ServiceNow Integration¶

The ServiceNow integration (Admin > Settings > ServiceNow) enables bi-directional synchronization between Turbo EA and your ServiceNow CMDB. This guide covers everything from initial setup to advanced recipes and operational best practices.

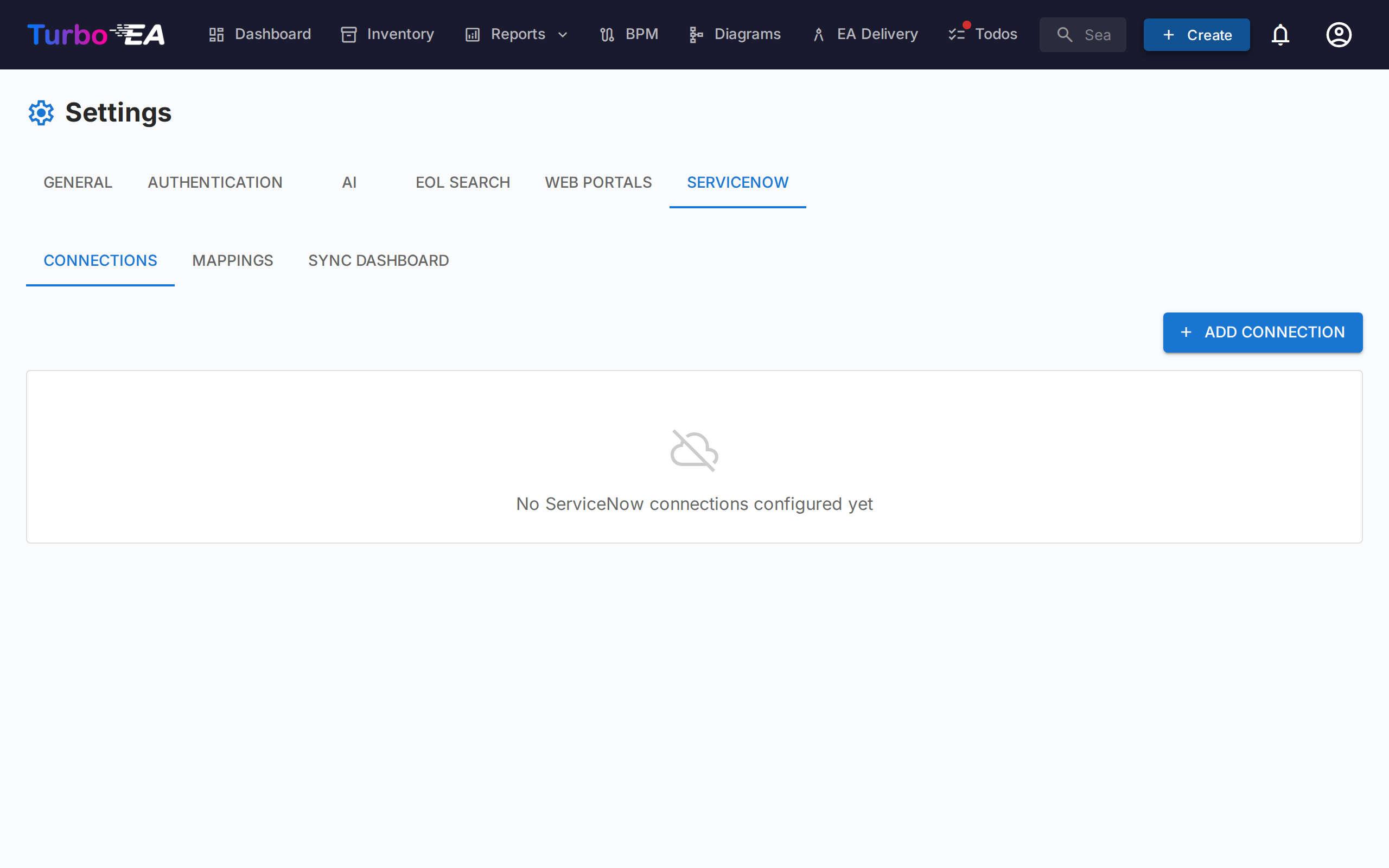

ServiceNow Integration Settings

Why Integrate ServiceNow with Turbo EA?¶

ServiceNow CMDB and Enterprise Architecture tools serve different but complementary purposes:

	ServiceNow CMDB	Turbo EA
Focus	IT operations — what's running, who owns it, what incidents occurred	Strategic planning — what should the landscape look like in 3 years?
Maintained by	IT Operations, Asset Management	EA Team, Business Architects
Strength	Automated discovery, ITSM workflows, operational accuracy	Business context, capability mapping, lifecycle planning, assessments
Typical data	Hostnames, IPs, install status, assignment groups, contracts	Business criticality, functional fit, technical debt, strategic roadmap

Turbo EA is the system of record for your architecture landscape — names, descriptions, lifecycle plans, assessments, and business context all live here. ServiceNow supplements Turbo EA with operational and technical metadata (hostnames, IPs, SLA data, install status) that comes from automated discovery and ITSM workflows. The integration keeps these two systems connected while respecting that Turbo EA leads.

What You Can Do¶

Pull sync — Seed Turbo EA with CIs from ServiceNow, then take ownership. Ongoing pulls only update operational fields (IPs, status, SLAs) that SNOW discovers automatically
Push sync — Export EA-curated data back to ServiceNow (names, descriptions, assessments, lifecycle plans) so ITSM teams see EA context
Bidirectional sync — Turbo EA leads most fields; SNOW leads a small set of operational/technical fields. Both systems stay in sync
Identity mapping — Persistent cross-reference tracking (sys_id <-> card UUID) ensures records stay linked across syncs

Integration Architecture¶

+------------------+         HTTPS / Table API          +------------------+
|   Turbo EA       | <--------------------------------> |  ServiceNow      |
|                  |                                     |                  |
|  Cards           |  Pull: SNOW CIs -> Turbo Cards      |  CMDB CIs        |
|  (Application,   |  Push: Turbo Cards -> SNOW CIs      |  (cmdb_ci_appl,  |
|   ITComponent,   |                                     |   cmdb_ci_server, |
|   Provider, ...) |  Identity Map tracks sys_id <-> UUID |   core_company)  |
+------------------+                                     +------------------+

The integration uses ServiceNow's Table API over HTTPS. Credentials are encrypted at rest using Fernet (AES-128-CBC) derived from your SECRET_KEY. All sync operations are logged as events with source: "servicenow_sync" for a complete audit trail.

Planning Your Integration¶

Before configuring anything, answer these questions:

1. Which card types need data from ServiceNow?¶

Start small. The most common integration points are:

Priority	Turbo EA Type	ServiceNow Source	Why
High	Application	`cmdb_ci_business_app`	Applications are the core of EA — CMDB has authoritative names, owners, and status
High	ITComponent (Software)	`cmdb_ci_spkg`	Software products feed into EOL tracking and tech radar
Medium	ITComponent (Hardware)	`cmdb_ci_server`	Server landscape for infrastructure mapping
Medium	Provider	`core_company`	Vendor registry for cost and relationship management
Lower	Interface	`cmdb_ci_endpoint`	Integration endpoints (often maintained manually in EA)
Lower	DataObject	`cmdb_ci_database`	Database instances

2. Which system is the source of truth for each field?¶

This is the most important decision. The default should be Turbo EA leads — the EA tool is the system of record for your architecture landscape. ServiceNow should only lead for a narrow set of operational and technical fields that come from automated discovery or ITSM workflows. Everything else — names, descriptions, assessments, lifecycle planning, costs — is owned and curated by the EA team in Turbo EA.

Recommended model — "Turbo EA leads, SNOW supplements":

Field Type	Source of Truth	Why
Names and descriptions	Turbo leads	EA team curates authoritative names and writes strategic descriptions; CMDB names can be messy or auto-generated
Business criticality	Turbo leads	EA team's strategic assessment — not operational data
Functional / technical fit	Turbo leads	TIME model scores are an EA concern
Lifecycle (all phases)	Turbo leads	Plan, phaseIn, active, phaseOut, endOfLife — all EA planning data
Cost data	Turbo leads	EA tracks total cost of ownership; CMDB may have contract line items but EA owns the consolidated view
Hosting type, category	Turbo leads	EA classifies applications by hosting model for strategic analysis
Technical metadata	SNOW leads	IPs, OS versions, hostnames, serial numbers — automated discovery data that EA doesn't maintain
SLA / operational status	SNOW leads	Install status, SLA targets, availability metrics — ITSM operational data
Assignment group / support	SNOW leads	Operational ownership tracked in ServiceNow workflows
Discovery dates	SNOW leads	First/last discovered, last scan — CMDB automation metadata

3. How often should you sync?¶

Scenario	Frequency	Notes
Initial import	Once	Additive mode, review carefully
Active landscape management	Daily	Automated via cron during off-hours
Compliance reporting	Weekly	Before generating reports
Ad-hoc	As needed	Before major EA reviews or presentations

Step 1: ServiceNow Prerequisites¶

Create a Service Account¶

In ServiceNow, create a dedicated service account (never use personal accounts):

Role	Purpose	Required?
`itil`	Read access to CMDB tables	Yes
`cmdb_read`	Read Configuration Items	Yes
`rest_api_explorer`	Helpful for testing queries	Recommended
`import_admin`	Write access to target tables	Only for push sync

Best practice: Create a custom role with read-only access to only the specific tables you plan to sync. The itil role is broad — a custom scoped role limits blast radius.

Network Requirements¶

Turbo EA backend must reach your SNOW instance over HTTPS (port 443)
Configure firewall rules and IP allowlists
Instance URL format: https://company.service-now.com or https://company.servicenowservices.com

Choose Authentication Method¶

Method	Pros	Cons	Recommendation
Basic Auth	Simple setup	Credentials sent every request	Development/testing only
OAuth 2.0	Token-based, scoped, audit-friendly	More setup steps	Recommended for production

For OAuth 2.0: 1. In ServiceNow: System OAuth > Application Registry 2. Create a new OAuth API endpoint for external clients 3. Note the Client ID and Client Secret 4. Rotate secrets on a 90-day cycle

Step 2: Create a Connection¶

Navigate to Admin > ServiceNow > Connections tab.

Create and Test¶

Click Add Connection
Fill in:

Field	Example Value	Notes
Name	`Production CMDB`	Descriptive label for your team
Instance URL	`https://company.service-now.com`	Must use HTTPS
Auth Type	Basic Auth or OAuth 2.0	OAuth recommended for production
Credentials	(per auth type)	Encrypted at rest via Fernet

Click Create, then click the test icon (wifi symbol) to verify connectivity
Green "Connected" chip — Ready to go
Red "Failed" chip — Check credentials, network, and URL

Multiple Connections¶

You can create multiple connections for: - Production vs development instances - Regional SNOW instances (e.g., EMEA, APAC) - Different teams with separate service accounts

Each mapping references a specific connection.

Step 3: Design Your Mappings¶

Switch to the Mappings tab. A mapping connects one Turbo EA card type to one ServiceNow table.

Create a Mapping¶

Click Add Mapping and configure:

Field	Description	Example
Connection	Which ServiceNow instance to use	Production CMDB
Card Type	The Turbo EA card type to sync	Application
SNOW Table	The ServiceNow table API name	`cmdb_ci_business_app`
Sync Direction	Which operations are available (see below)	ServiceNow -> Turbo EA
Sync Mode	How to handle deletions	Conservative
Max Deletion Ratio	Safety threshold for bulk deletes	50%
Filter Query	ServiceNow encoded query to limit scope	`active=true^install_status=1`
Skip Staging	Apply changes directly without review	Off (recommended for initial sync)

Common SNOW Table Mappings¶

Turbo EA Type	ServiceNow Table	Description
Application	`cmdb_ci_business_app`	Business applications (most common)
Application	`cmdb_ci_appl`	General application CIs
ITComponent (Software)	`cmdb_ci_spkg`	Software packages
ITComponent (Hardware)	`cmdb_ci_server`	Physical/virtual servers
ITComponent (SaaS)	`cmdb_ci_cloud_service_account`	Cloud service accounts
Provider	`core_company`	Vendors / companies
Interface	`cmdb_ci_endpoint`	Integration endpoints
DataObject	`cmdb_ci_database`	Database instances
System	`cmdb_ci_computer`	Computer CIs
Organization	`cmn_department`	Departments

Filter Query Examples¶

Always filter to avoid importing stale or retired records:

# Only active CIs (minimum recommended filter)
active=true

# Active CIs with install status "Installed"
active=true^install_status=1

# Applications in production use
active=true^used_for=Production

# CIs updated in the last 30 days
active=true^sys_updated_on>=javascript:gs.daysAgoStart(30)

# Specific assignment group
active=true^assignment_group.name=IT Operations

# Exclude retired CIs
active=true^install_statusNOT IN7,8

Best practice: Always include active=true at minimum. CMDB tables often contain thousands of retired or decommissioned records that should not be imported into your EA landscape.

Step 4: Configure Field Mappings¶

Each mapping contains field mappings that define how individual fields translate between the two systems. The Turbo EA Field input provides autocomplete suggestions based on the selected card type — including core fields, lifecycle dates, and all custom attributes from the type's schema.

Adding Fields¶

For each field mapping, you configure:

Setting	Description
Turbo EA Field	Field path in Turbo EA (autocomplete suggests options based on card type)
SNOW Field	ServiceNow column API name (e.g., `name`, `short_description`)
Direction	Per-field source of truth: SNOW leads or Turbo leads
Transform	How to convert values: Direct, Value Map, Date, Boolean
Identity (ID checkbox)	Used for matching records during initial sync

Turbo EA Field Paths¶

The autocomplete groups fields by section. Here's the full path reference:

Path	Target	Example Value
`name`	Card display name	`"SAP S/4HANA"`
`description`	Card description	`"Core ERP system for financials"`
`lifecycle.plan`	Lifecycle: Plan date	`"2024-01-15"`
`lifecycle.phaseIn`	Lifecycle: Phase In date	`"2024-03-01"`
`lifecycle.active`	Lifecycle: Active date	`"2024-06-01"`
`lifecycle.phaseOut`	Lifecycle: Phase Out date	`"2028-12-31"`
`lifecycle.endOfLife`	Lifecycle: End of Life date	`"2029-06-30"`
`attributes.<key>`	Any custom attribute from the card type's fields schema	Varies by field type

For example, if your Application type has a field with key businessCriticality, select attributes.businessCriticality from the dropdown.

Identity Fields — How Matching Works¶

Mark one or more fields as Identity (key icon). These are used during the first sync to match ServiceNow records to existing Turbo EA cards:

Identity map lookup — If a sys_id <-> card UUID link already exists, use it
Exact name match — Match on the identity field value (e.g., matching by application name)
Fuzzy match — If no exact match, use SequenceMatcher with 85% similarity threshold

Best practice: Always mark the name field as an identity field. If names differ between systems (e.g., SNOW includes version numbers like "SAP S/4HANA v2.1" but Turbo EA has "SAP S/4HANA"), clean them up before the first sync for better match quality.

After the first sync establishes identity map links, subsequent syncs use the persistent identity map and don't rely on name matching.

Step 5: Run Your First Sync¶

Switch to the Sync Dashboard tab.

Triggering a Sync¶

For each active mapping, you see Pull and/or Push buttons depending on the configured sync direction:

Pull (cloud download icon) — Fetches data from SNOW into Turbo EA
Push (cloud upload icon) — Sends Turbo EA data to ServiceNow

What Happens During a Pull Sync¶

1. FETCH     Retrieve all matching records from SNOW (batches of 500)
2. MATCH     Match each record to an existing card:
             a) Identity map (persistent sys_id <-> card UUID lookup)
             b) Exact name match on identity fields
             c) Fuzzy name match (85% similarity threshold)
3. TRANSFORM Apply field mappings to convert SNOW -> Turbo EA format
4. DIFF      Compare transformed data against existing card fields
5. STAGE     Assign an action to each record:
             - create: New, no matching card found
             - update: Match found, fields differ
             - skip:   Match found, no differences
             - delete: In identity map but absent from SNOW
6. APPLY     Execute staged actions (create/update/archive cards)

When Skip Staging is enabled, steps 5 and 6 merge — actions are applied directly without writing staged records.

Reviewing Sync Results¶

The Sync History table shows after each run:

Column	Description
Started	When the sync began
Direction	Pull or Push
Status	`completed`, `failed`, or `running`
Fetched	Total records retrieved from ServiceNow
Created	New cards created in Turbo EA
Updated	Existing cards updated
Deleted	Cards archived (soft-deleted)
Errors	Records that failed to process
Duration	Wall-clock time

Click the list icon on any run to inspect individual staged records, including the field-level diff for each update.

Recommended First Sync Procedure¶

1. Set mapping to ADDITIVE mode with staging ON
2. Run pull sync
3. Review staged records — check creates look correct
4. Go to Inventory, verify imported cards
5. Adjust field mappings or filter query if needed
6. Run again until satisfied
7. Switch to CONSERVATIVE mode for ongoing use
8. After several successful runs, enable Skip Staging

Understanding Sync Direction vs Field Direction¶

This is the most commonly misunderstood concept. There are two levels of direction that work together:

Table-Level: Sync Direction¶

Set on the mapping itself. Controls which sync operations are available on the Sync Dashboard:

Sync Direction	Pull button?	Push button?	Use when...
ServiceNow -> Turbo EA	Yes	No	CMDB is the master source, you just import
Turbo EA -> ServiceNow	No	Yes	EA tool enriches CMDB with assessments
Bidirectional	Yes	Yes	Both systems contribute different fields

Field-Level: Direction¶

Set per field mapping. Controls which system's value wins during a sync run:

Field Direction	During Pull (SNOW -> Turbo)	During Push (Turbo -> SNOW)
SNOW leads	Value is imported from ServiceNow	Value is skipped (not pushed)
Turbo leads	Value is skipped (not overwritten)	Value is exported to ServiceNow

How They Work Together — Example¶

Mapping: Application <-> cmdb_ci_business_app, Bidirectional

Field	Direction	Pull does...	Push does...
`name`	Turbo leads	Skips (EA curates names)	Pushes EA name -> SNOW
`description`	Turbo leads	Skips (EA writes descriptions)	Pushes description -> SNOW
`lifecycle.active`	Turbo leads	Skips (EA manages lifecycle)	Pushes go-live date -> SNOW
`attributes.businessCriticality`	Turbo leads	Skips (EA assessment)	Pushes assessment -> SNOW custom field
`attributes.ipAddress`	SNOW leads	Imports IP from discovery	Skips (operational data)
`attributes.installStatus`	SNOW leads	Imports operational status	Skips (ITSM data)

Key insight: The table-level direction determines what buttons appear. The field-level direction determines which fields actually transfer during each operation. A bidirectional mapping where Turbo EA leads most fields and SNOW only leads operational/technical fields is the most powerful configuration.

Best Practice: Field Direction by Data Type¶

The default should be Turbo leads for the vast majority of fields. Only set SNOW leads for operational and technical metadata that comes from automated discovery or ITSM workflows.

Data Category	Recommended Direction	Rationale
Names, display labels	Turbo leads	EA team curates authoritative, clean names — CMDB names are often auto-generated or inconsistent
Description	Turbo leads	EA descriptions capture strategic context, business value, and architectural significance
Business criticality (TIME model)	Turbo leads	Core EA assessment — not operational data
Functional/technical suitability	Turbo leads	EA-specific scoring and roadmap classification
Lifecycle (all phases)	Turbo leads	Plan, phaseIn, active, phaseOut, endOfLife are all EA planning decisions
Cost data	Turbo leads	EA tracks total cost of ownership and budget allocation
Hosting type, classification	Turbo leads	Strategic categorization maintained by architects
Vendor/provider info	Turbo leads	EA manages vendor strategy, contracts, and risk — SNOW may have a vendor name but EA owns the relationship
Technical metadata (OS, IP, hostname)	SNOW leads	Automated discovery data — EA doesn't maintain this
SLA targets, availability metrics	SNOW leads	Operational data from ITSM workflows
Install status, operational state	SNOW leads	CMDB tracks whether a CI is installed, retired, etc.
Assignment group, support team	SNOW leads	Operational ownership managed in ServiceNow
Discovery metadata (first/last seen)	SNOW leads	CMDB automation timestamps

Skip Staging — When to Use It¶

By default, pull syncs follow a stage-then-apply workflow:

Fetch -> Match -> Transform -> Diff -> STAGE -> Review -> APPLY

Records are written to a staging table, allowing you to review what will change before applying. This is visible in the Sync Dashboard under "View staged records."

Skip Staging Mode¶

When you enable Skip Staging on a mapping, records are applied directly:

Fetch -> Match -> Transform -> Diff -> APPLY DIRECTLY

No staged records are created — changes happen immediately.

	Staging (default)	Skip Staging
Review step	Yes — inspect diffs before applying	No — changes apply immediately
Staged records table	Populated with create/update/delete entries	Not populated
Audit trail	Staged records + event history	Event history only
Performance	Slightly slower (writes staging rows)	Slightly faster
Undo	Can abort before applying	Must manually revert

When to Use Each¶

Scenario	Recommendation
First-time import	Use staging — Review what gets created before applying
New or changed mapping	Use staging — Verify field transforms produce correct output
Stable, well-tested mapping	Skip staging — No need to review every run
Automated daily syncs (cron)	Skip staging — Unattended runs can't wait for review
Large CMDB (10,000+ CIs)	Skip staging — Avoids creating thousands of staging rows
Compliance-sensitive environment	Use staging — Maintain full audit trail in staging table

Best practice: Start with staging enabled for your first several syncs. Once you're confident the mapping produces correct results, enable skip staging for automated runs.

Sync Modes and Deletion Safety¶

Sync Modes¶

Mode	Creates	Updates	Deletes	Best For
Additive	Yes	Yes	Never	Initial imports, low-risk environments
Conservative	Yes	Yes	Only cards created by sync	Default for ongoing syncs
Strict	Yes	Yes	All linked cards	Full mirror of CMDB

Additive never removes cards from Turbo EA, making it the safest option for first-time imports and environments where Turbo EA contains cards not present in ServiceNow (manually created cards, cards from other sources).

Conservative (default) tracks whether each card was originally created by the sync engine. Only those cards can be auto-archived if they disappear from ServiceNow. Cards created manually in Turbo EA or imported from other sources are never touched.

Strict archives any linked card whose corresponding ServiceNow CI no longer appears in the query results, regardless of who created it. Use this only when ServiceNow is the absolute source of truth and you want Turbo EA to mirror it exactly.

Max Deletion Ratio — Safety Net¶

As a safety net, the engine skips all deletions if the count exceeds the configured ratio:

deletions / total_linked > max_deletion_ratio  ->  SKIP ALL DELETIONS

Example with 10 linked records and 50% threshold:

Scenario	Deletions	Ratio	Result
3 CIs removed normally	3 / 10 = 30%	Under threshold	Deletions proceed
6 CIs removed at once	6 / 10 = 60%	Over threshold	All deletions skipped
SNOW returns empty (outage)	10 / 10 = 100%	Over threshold	All deletions skipped

This prevents catastrophic data loss from filter query changes, temporary ServiceNow outages, or misconfigured table names.

Best practice: Keep the deletion ratio at 50% or lower for tables with fewer than 100 records. For large tables (1,000+), you can safely set it to 25%.

Recommended Progression¶

Week 1:   ADDITIVE mode, staging ON, run manually, review every record
Week 2-4: CONSERVATIVE mode, staging ON, run daily, spot-check results
Month 2+: CONSERVATIVE mode, staging OFF (skip), automated daily cron

Recommended Recipes by Type¶

Recipe 1: Applications from CMDB (Most Common)¶

Goal: Import the application landscape from ServiceNow, then take ownership of names, descriptions, assessments, and lifecycle in Turbo EA. SNOW only leads operational fields.

Mapping:

Setting	Value
Card Type	Application
SNOW Table	`cmdb_ci_business_app`
Direction	Bidirectional
Mode	Conservative
Filter	`active=true^install_status=1`

Field mappings:

Turbo EA Field	SNOW Field	Direction	Transform	ID?
`name`	`name`	Turbo leads	Direct	Yes
`description`	`short_description`	Turbo leads	Direct
`lifecycle.active`	`go_live_date`	Turbo leads	Date
`lifecycle.endOfLife`	`retirement_date`	Turbo leads	Date
`attributes.businessCriticality`	`busines_criticality`	Turbo leads	Value Map
`attributes.hostingType`	`hosting_type`	Turbo leads	Direct
`attributes.installStatus`	`install_status`	SNOW leads	Direct
`attributes.ipAddress`	`ip_address`	SNOW leads	Direct

Value map config for businessCriticality:

{
  "mapping": {
    "1 - most critical": "missionCritical",
    "2 - somewhat critical": "businessCritical",
    "3 - less critical": "businessOperational",
    "4 - not critical": "administrativeService"
  }
}

First sync tip: On the very first pull, SNOW values populate all fields (since cards don't exist yet). After that, Turbo leads fields are owned by the EA team — subsequent pulls only update the operational SNOW-leads fields (install status, IP), while the EA team manages everything else directly in Turbo EA.

After import: Refine application names, write strategic descriptions, map to Business Capabilities, add functional/technical suitability assessments, and set lifecycle phases — all of this is now owned by Turbo EA and will be pushed back to ServiceNow on push syncs.

Recipe 2: IT Components (Servers)¶

Goal: Import server infrastructure for infrastructure mapping and dependency analysis. Servers are more operational than applications, so more fields come from SNOW — but Turbo EA still leads names and descriptions.

Mapping:

Setting	Value
Card Type	ITComponent
SNOW Table	`cmdb_ci_server`
Direction	Bidirectional
Mode	Conservative
Filter	`active=true^hardware_statusNOT IN6,7`

Field mappings:

Turbo EA Field	SNOW Field	Direction	Transform	ID?
`name`	`name`	Turbo leads	Direct	Yes
`description`	`short_description`	Turbo leads	Direct
`attributes.manufacturer`	`manufacturer.name`	Turbo leads	Direct
`attributes.operatingSystem`	`os`	SNOW leads	Direct
`attributes.ipAddress`	`ip_address`	SNOW leads	Direct
`attributes.serialNumber`	`serial_number`	SNOW leads	Direct
`attributes.hostname`	`host_name`	SNOW leads	Direct

Note: For servers, operational/discovery fields like OS, IP, serial number, and hostname naturally come from SNOW's automated discovery. But the EA team still owns the display name (which may differ from the hostname) and description for strategic context.

After import: Link IT Components to Applications using relations, which feeds the dependency graph and infrastructure reports.

Recipe 3: Software Products with EOL Tracking¶

Goal: Import software products and combine with Turbo EA's endoflife.date integration. Turbo EA leads on names, descriptions, and vendor — version is a factual field that SNOW can lead on.

Mapping:

Setting	Value
Card Type	ITComponent
SNOW Table	`cmdb_ci_spkg`
Direction	Bidirectional
Mode	Conservative
Filter	`active=true`

Field mappings:

Turbo EA Field	SNOW Field	Direction	Transform	ID?
`name`	`name`	Turbo leads	Direct	Yes
`description`	`short_description`	Turbo leads	Direct
`attributes.version`	`version`	SNOW leads	Direct
`attributes.vendor`	`manufacturer.name`	Turbo leads	Direct

After import: Go to Admin > EOL and use Mass Search to automatically match imported IT Components against endoflife.date products. This gives you automated EOL risk tracking that combines CMDB inventory with public lifecycle data.

Recipe 4: Vendors / Providers (Bidirectional)¶

Goal: Keep the vendor registry in sync. Turbo EA owns vendor names, descriptions, and strategic context. SNOW supplements with operational contact data.

Mapping:

Setting	Value
Card Type	Provider
SNOW Table	`core_company`
Direction	Bidirectional
Mode	Additive
Filter	`vendor=true`

Field mappings:

Turbo EA Field	SNOW Field	Direction	Transform	ID?
`name`	`name`	Turbo leads	Direct	Yes
`description`	`notes`	Turbo leads	Direct
`attributes.website`	`website`	Turbo leads	Direct
`attributes.contactEmail`	`email`	SNOW leads	Direct

Why Turbo leads for most fields: The EA team curates vendor strategy, manages relationships, and tracks risk — this includes the vendor's display name, description, and web presence. SNOW leads only on operational contact data that may be updated by procurement or asset management teams.

Recipe 5: Push EA Assessments Back to ServiceNow¶

Goal: Export EA-specific assessments to ServiceNow custom fields so ITSM teams can see EA context.

Mapping:

Setting	Value
Card Type	Application
SNOW Table	`cmdb_ci_business_app`
Direction	Turbo EA -> ServiceNow
Mode	Additive

Field mappings:

Turbo EA Field	SNOW Field	Direction	Transform	ID?
`name`	`name`	SNOW leads	Direct	Yes
`attributes.businessCriticality`	`u_ea_business_criticality`	Turbo leads	Value Map
`attributes.functionalSuitability`	`u_ea_functional_fit`	Turbo leads	Value Map
`attributes.technicalSuitability`	`u_ea_technical_fit`	Turbo leads	Value Map

Important: Push sync to custom fields (prefixed with u_) requires those columns to already exist in ServiceNow. Work with your ServiceNow admin to create them before configuring the push mapping. The service account needs import_admin role for write access.

Why this matters: ITSM teams see EA assessments directly in ServiceNow incident/change workflows. When a "Mission Critical" application has an incident, priority escalation rules can use the EA-provided criticality score.

Transform Types Reference¶

Direct (default)¶

Pass the value through unchanged. Use for text fields that have the same format in both systems.

Value Map¶

Translates enumerated values between systems. Configure with a JSON mapping:

{
  "mapping": {
    "1": "missionCritical",
    "2": "businessCritical",
    "3": "businessOperational",
    "4": "administrativeService"
  }
}

The mapping reverses automatically when pushing from Turbo EA to ServiceNow. For example, during push, "missionCritical" becomes "1".

Date Format¶

Truncates ServiceNow datetime values (2024-06-15 14:30:00) to date-only (2024-06-15). Use for lifecycle phase dates where time is irrelevant.

Boolean¶

Converts between ServiceNow string booleans ("true", "1", "yes") and native booleans. Useful for fields like "is_virtual", "active", etc.

Security Best Practices¶

Credential Management¶

Practice	Details
Encryption at rest	All credentials encrypted via Fernet (AES-128-CBC) derived from `SECRET_KEY`. If you rotate `SECRET_KEY`, re-enter all ServiceNow credentials.
Least privilege	Create a dedicated SNOW service account with read-only access to specific tables. Only grant write access if using push sync.
OAuth 2.0 preferred	Basic Auth sends credentials on every API call. OAuth uses short-lived tokens with scope restrictions.
Credential rotation	Rotate passwords or client secrets every 90 days.

Network Security¶

Practice	Details
HTTPS enforced	HTTP URLs are rejected at validation time. All connections must use HTTPS.
Table name validation	Table names validated against `^[a-zA-Z0-9_]+$` to prevent injection.
sys_id validation	sys_id values validated as 32-character hex strings.
IP allowlisting	Configure ServiceNow IP Access Control to only allow your Turbo EA server's IP.

Access Control¶

Practice	Details
RBAC gated	All ServiceNow endpoints require `servicenow.manage` permission.
Audit trail	All sync-created changes publish events with `source: "servicenow_sync"`, visible in card history.
No credential exposure	Passwords and secrets are never returned in API responses.

Production Checklist¶

[ ] Dedicated ServiceNow service account (not a personal account)
[ ] OAuth 2.0 with client credentials grant
[ ] Credential rotation schedule (every 90 days)
[ ] Service account restricted to only mapped tables
[ ] ServiceNow IP allowlist configured for Turbo EA server IP
[ ] Max deletion ratio set to 50% or lower
[ ] Sync runs monitored for unusual error or deletion counts
[ ] Filter queries include active=true at minimum

Operational Runbook¶

Initial Setup Sequence¶

1. Create ServiceNow service account with minimum required roles
2. Verify network connectivity (can Turbo EA reach SNOW over HTTPS?)
3. Create connection in Turbo EA and test it
4. Verify metamodel types have all fields you want to sync
5. Create first mapping with ADDITIVE mode, staging ON
6. Use the Preview button (via API) to verify mapping produces correct output
7. Run first pull sync — review staged records in the Sync Dashboard
8. Apply staged records
9. Verify imported cards in the Inventory
10. Adjust field mappings if needed, re-run
11. Switch mapping to CONSERVATIVE mode for ongoing use
12. After several successful runs, enable Skip Staging for automation

Ongoing Operations¶

Task	Frequency	How
Run pull sync	Daily or weekly	Sync Dashboard > Pull button (or cron)
Review sync stats	After each run	Check error/deletion counts
Test connections	Monthly	Click test button on each connection
Rotate credentials	Quarterly	Update in both SNOW and Turbo EA
Review identity map	Quarterly	Check orphaned entries via sync stats
Audit card history	As needed	Filter events by `servicenow_sync` source

Setting Up Automated Syncs¶

Syncs can be triggered via API for automation:

# Daily pull sync at 2:00 AM
0 2 * * * curl -s -X POST \
  -H "Authorization: Bearer $TURBOEA_TOKEN" \
  "https://turboea.company.com/api/v1/servicenow/sync/pull/$MAPPING_ID" \
  >> /var/log/turboea-sync.log 2>&1

Best practice: Run syncs during off-peak hours. For large CMDB tables (10,000+ CIs), expect 2-5 minutes depending on network latency and record count.

Capacity Planning¶

CMDB Size	Expected Duration	Recommendation
< 500 CIs	< 30 seconds	Sync daily, staging optional
500-5,000 CIs	30s - 2 minutes	Sync daily, skip staging
5,000-20,000 CIs	2-5 minutes	Sync nightly, skip staging
20,000+ CIs	5-15 minutes	Sync weekly, use filter queries to split

Troubleshooting¶

Connection Issues¶

Symptom	Cause	Fix
`Connection failed: [SSL]`	Self-signed or expired cert	Ensure SNOW uses a valid public CA certificate
`HTTP 401: Unauthorized`	Wrong credentials	Re-enter username/password; check account is not locked
`HTTP 403: Forbidden`	Insufficient roles	Grant `itil` and `cmdb_read` to the service account
`Connection failed: timed out`	Firewall block	Check rules; allowlist Turbo EA's IP in SNOW
Test OK but sync fails	Table-level permissions	Grant read access to the specific CMDB table

Sync Issues¶

Symptom	Cause	Fix
0 records fetched	Wrong table or filter	Verify table name; simplify filter query
All records are "create"	Identity mismatch	Mark `name` as identity; verify names match between systems
High error count	Transform failures	Check staged records for error messages
Deletions skipped	Ratio exceeded	Increase threshold or investigate why CIs disappeared
Changes not visible	Browser cache	Hard-refresh; check card history for events
Duplicate cards	Multiple mappings for same type	Use one mapping per card type per connection
Push changes rejected	Missing SNOW permissions	Grant `import_admin` role to service account

Diagnostic Tools¶

# Preview how records will map (5 samples, no side effects)
POST /api/v1/servicenow/mappings/{mapping_id}/preview

# Browse tables on the SNOW instance
GET /api/v1/servicenow/connections/{conn_id}/tables?search=cmdb

# Inspect columns for a table
GET /api/v1/servicenow/connections/{conn_id}/tables/cmdb_ci_business_app/fields

# Filter staged records by action or status
GET /api/v1/servicenow/sync/runs/{run_id}/staged?action=create
GET /api/v1/servicenow/sync/runs/{run_id}/staged?action=update
GET /api/v1/servicenow/sync/runs/{run_id}/staged?status=error

API Reference (Quick)¶

All endpoints require Authorization: Bearer <token> and servicenow.manage permission. Base path: /api/v1.

Connections¶

Method	Path	Description
GET	`/servicenow/connections`	List connections
POST	`/servicenow/connections`	Create connection
GET	`/servicenow/connections/{id}`	Get connection
PATCH	`/servicenow/connections/{id}`	Update connection
DELETE	`/servicenow/connections/{id}`	Delete connection + all mappings
POST	`/servicenow/connections/{id}/test`	Test connectivity
GET	`/servicenow/connections/{id}/tables`	Browse SNOW tables
GET	`/servicenow/connections/{id}/tables/{table}/fields`	List table columns

Mappings¶

Method	Path	Description
GET	`/servicenow/mappings`	List mappings with field mappings
POST	`/servicenow/mappings`	Create mapping with field mappings
GET	`/servicenow/mappings/{id}`	Get mapping with field mappings
PATCH	`/servicenow/mappings/{id}`	Update mapping (replaces fields if provided)
DELETE	`/servicenow/mappings/{id}`	Delete mapping
POST	`/servicenow/mappings/{id}/preview`	Dry-run preview (5 sample records)

Sync Operations¶

Method	Path	Description
POST	`/servicenow/sync/pull/{mapping_id}`	Pull sync (`?auto_apply=true` default)
POST	`/servicenow/sync/push/{mapping_id}`	Push sync
GET	`/servicenow/sync/runs`	List sync history (`?limit=20`)
GET	`/servicenow/sync/runs/{id}`	Get run details + stats
GET	`/servicenow/sync/runs/{id}/staged`	List staged records for a run
POST	`/servicenow/sync/runs/{id}/apply`	Apply pending staged records
